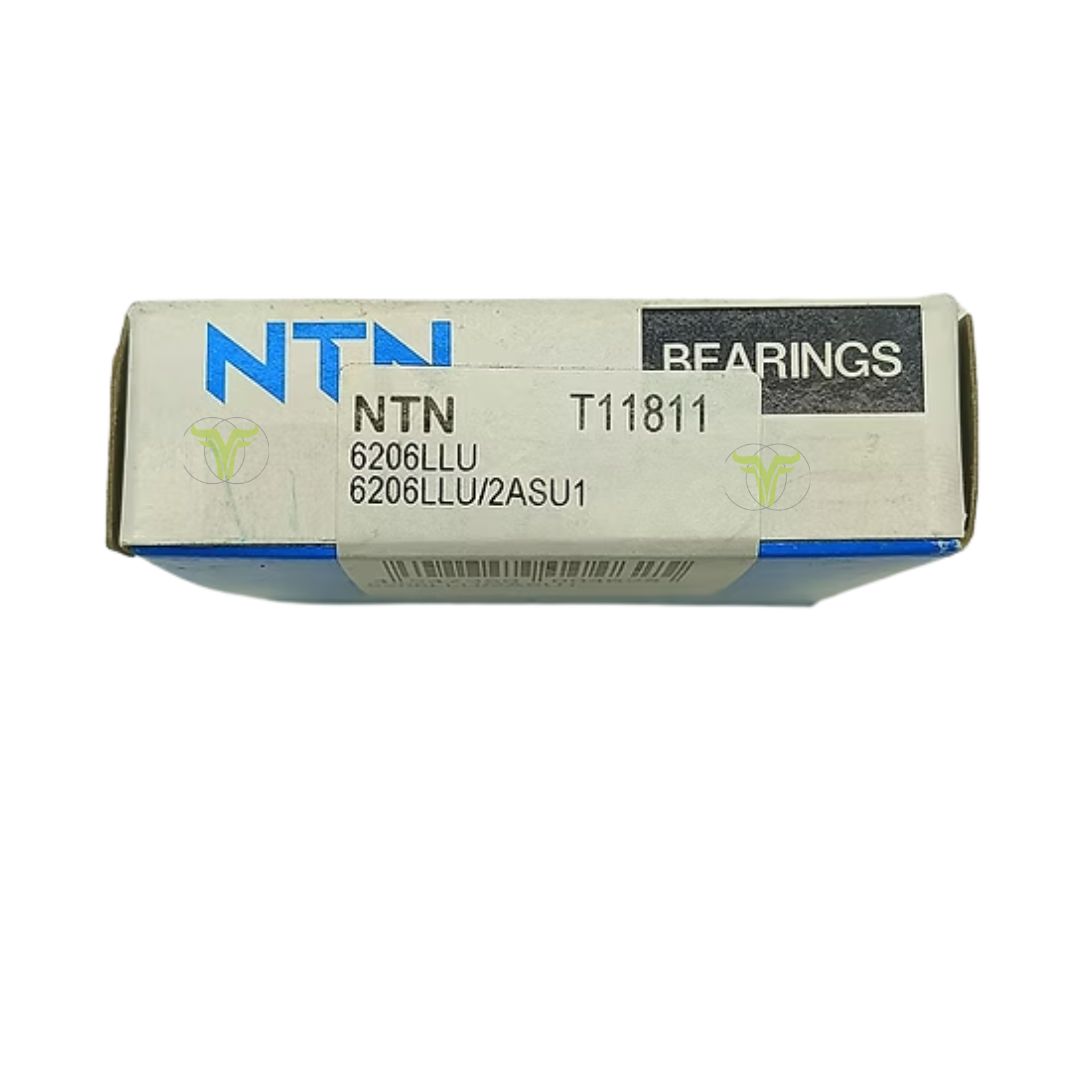

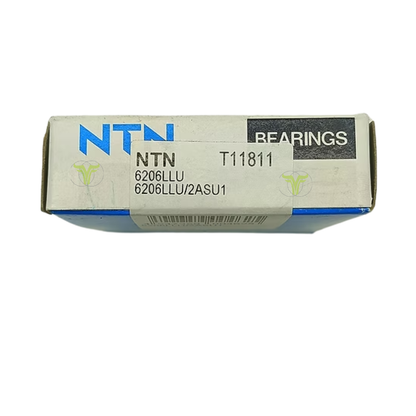

BEARING 6206

This bearing for gearbox mechanical buffalo (MB)

Dimension  - 60mm x 14 mm x Hole 29mm

The Bearing 6206 is a deep groove ball bearing commonly used in automotive, industrial, and mechanical applications. Below is a concise overview based on available information:

Specifications:

• Type: Single-row deep groove ball bearing.
• Part Number: 6206 (suffixes like 2RS, ZZ, or 2Z indicate seals/shields, e.g., 6206-2RS for rubber seals, 6206-ZZ for metal shields).
• Material: Typically chrome steel (Gcr15); stainless steel or ceramic options for specialized applications.
• Load Ratings (approximate, varies by manufacturer):
  • Dynamic Load: ~19,500 N
  • Static Load: ~11,300 N
• Speed Limits (approximate):
  • Grease Lubrication: ~10,000–12,000 RPM
  • Oil Lubrication: ~13,000–15,000 RPM
• Cage: Usually steel; nylon or brass for high-speed or specific uses.
• Sealing Options:
  • Open (no seals/shields)
  • 2RS (double rubber seals for dust/water resistance)
  • ZZ/2Z (double metal shields for lower friction)
• Clearance: Standard (C0), with C3 (greater clearance) for high-speed or high-temperature applications.

Applications:

• Automotive: Used in alternators, water pumps, wheel hubs, or clutch systems.
• Industrial: Common in electric motors, pumps, fans, and conveyor systems.
• Machinery: Found in agricultural equipment, power tools, and HVAC systems.
• Other: Bicycles, motorcycles, skateboards, or small appliances (sealed versions like 6206-2RS are popular).

Key Features:

• Handles radial and moderate axial loads in both directions.
• Low friction, suitable for high-speed operations.
• Durable and low-maintenance, especially with sealed/shielded versions.
• Standardized size ensures wide availability and cost-effectiveness.
