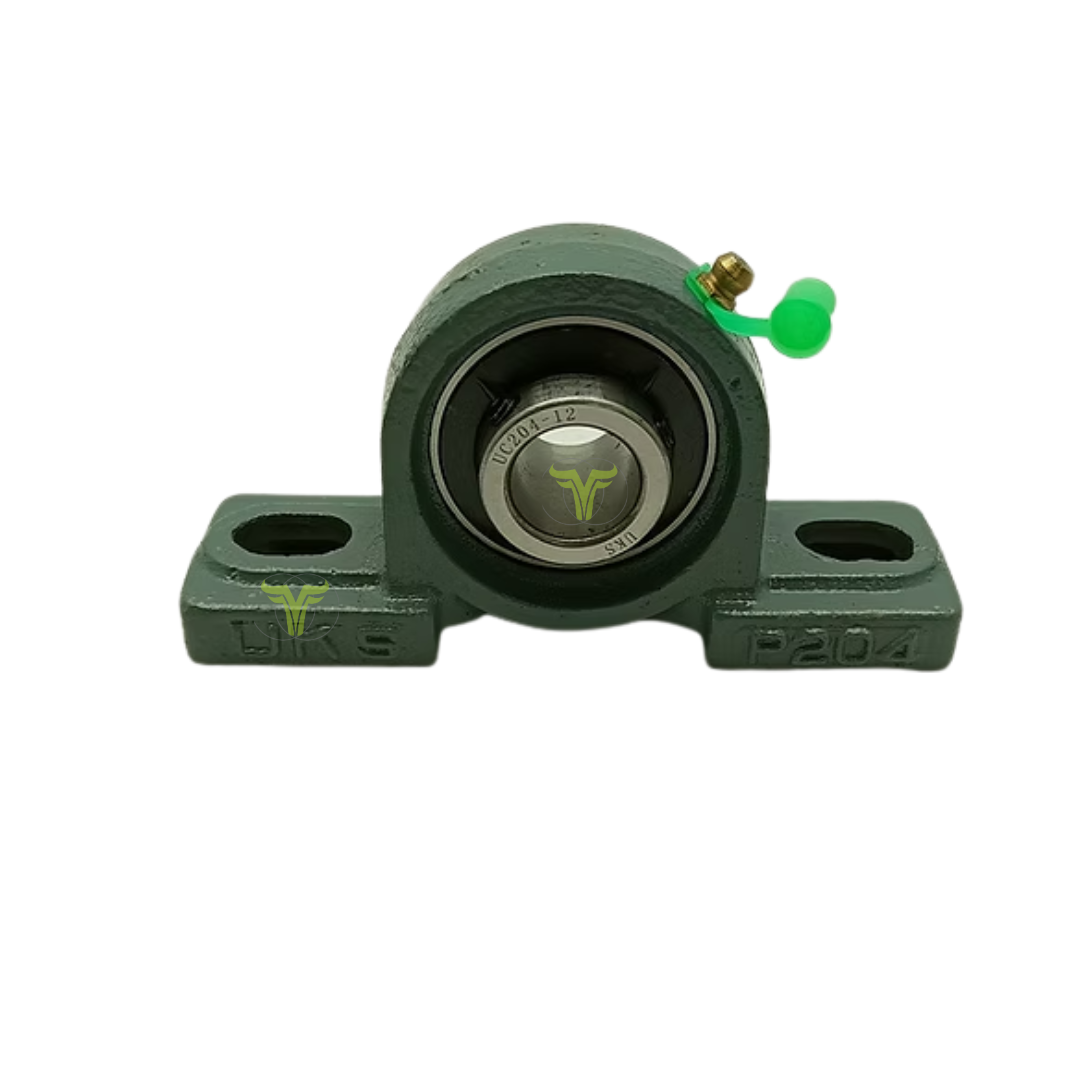

BEARING UCP - 204

Bearing UCP - 204 for Model H/Pivot Mechanical Buffalo (MB)

Dimension : 4.8" x 21/2"

Weight         : 10 gm

Key Details of UCP 204 Pillow Block Bearing:

• Description: The UCP 204 is a mounted bearing unit consisting of a cast iron pillow block housing (P204) and a radial insert ball bearing (UC204). It’s designed for standard-duty applications and features a set screw locking mechanism to secure the bearing to a shaft, which could work with a lever carriage lock to stabilize a carriage.
• Shaft Diameter: Fits a 20 mm (or 3/4" in some models, e.g., UCP204-12) diameter horizontal shaft.

• Features:
  • Housing: Cast iron, solid base with two mounting bolts for secure attachment to a machine frame.
  • Bearing: Chrome steel (UC204) with a wide inner ring and set screws to lock onto the shaft, preventing slippage.
  • Seals: Equipped with single or triple-lip seals to protect against contaminants like dust or moisture.
  • Relubrication: Includes a grease fitting (zerk) for easy maintenance.
  • Load Capacity: Dynamic load rating ~12.8 kN, static load rating ~6.65 kN.

• Applications: Used in systems requiring a horizontal shaft, such as:
  • Conveyor systems
  • Agricultural machinery
  • Construction equipment
  • Lathes or milling machines (where a carriage lock might be used)
