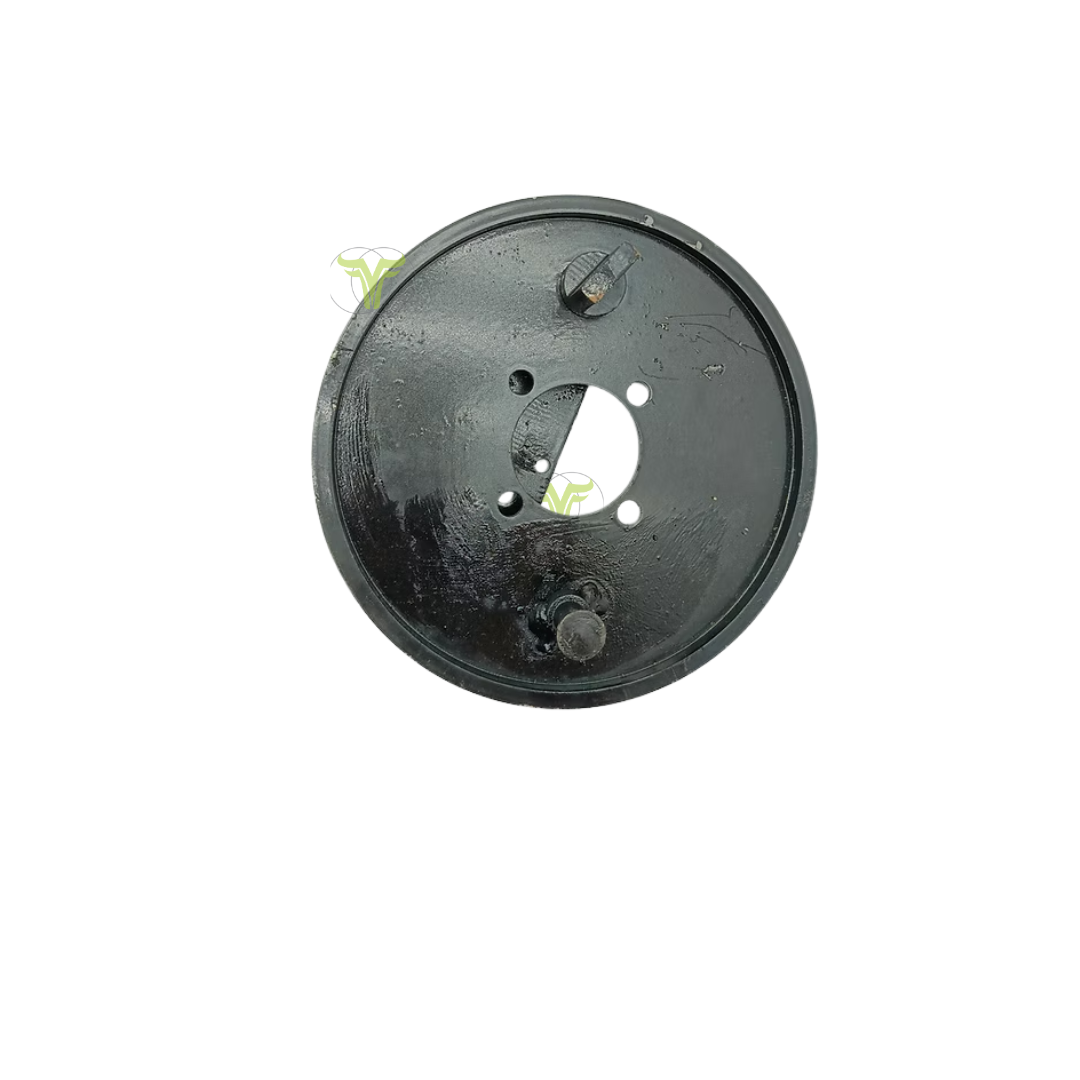

BRAKE CAP (BRAKE DRUM) GEARBOX

Dimension  :  6.72 "  -  Hole - 1.72 "

Weight  - 1 kg

Interpreting “Brake Cap (Brake Drum) Gearbox”

• Brake Cap:
  • Likely a dust cap or cover that protects the brake drum or wheel hub, preventing dirt and moisture from entering the braking or gearbox components.
  • Could also refer to a brake drum cap (e.g., a rubber plug or metal cover) used in drum brake systems to seal inspection or lubrication points.

• Brake Drum:
  • A cylindrical component in a drum brake system, mounted to the wheel or axle, where brake shoes press against its inner surface to slow or stop the vehicle.
  • In this context, it may be integrated with the gearbox or drivetrain, especially in go-karts or small vehicles where the brake drum is part of the transmission or axle assembly.

• Gearbox:
  • Likely a simple transmission (e.g., single-speed or centrifugal clutch-driven) connecting the engine to the axle in the Mechanical Buffalo.
  • The brake drum could be mounted on the gearbox output shaft or axle, serving as both a braking and power transmission component.

• Mechanical Buffalo Context:
  • The twin belt clutch suggests a centrifugal clutch (3/4" or 20mm short shaft) driving a belt system to the gearbox or axle.
  • The lever accelerator cable controls engine RPM, engaging the clutch to power the wheels.
  • The hexagon nut with stud secures the rim to the hub, which may house the brake drum.
  • The brake drum and cap are likely part of the rear axle or gearbox assembly, providing braking for the vehicle’s wheels.

• Missing Specifications:
  • No dimensions or weight were provided for the brake cap or drum, so I’ll assume compatibility with the rim (secured by M12 x 1.25 studs) and a small engine setup (50cc–250cc).
