BYSON Truck Catalogue
Product catalogue
BYSON 3-Wheel Agriculture Trucks
X-600 · X-800 · X-900. Built to order in Kluang, Johor, with spare parts stocked in Malaysia.
Single-operator 3-wheel trucks with a 10 HP diesel engine, built for plantation and farm haulage. Pricing is by quotation.
Choose by how you unload
| X-600 Standard | X-800 | X-900 Jacklift | |
|---|---|---|---|
| Unloading | Manual hand-lever tilt and door release | One-button battery-operated hydraulic tipper | Hydraulic tipper plus hydraulic scissor jacklift |
| Unloading height | Ground level | Ground level | 3.5 ft to 7 ft |
| Load capacity | 700 kg uneven ground / 1,000 kg flat ground | Safe working load 500–700 kg | Safe working load 500–700 kg |
| Engine | 10 HP, 418 cc, single-cylinder, 4-stroke, air-cooled diesel (model BESB186FA) | ||
| Gearbox | 3 forward + 1 reverse with differential | ||
| Tyres | Front 21 x 9.00-10, rear 21 x 10.00-10 | ||
| Dimensions (L x W x H) | 2300 x 1300 x 1310 mm | On request | On request |
| Best for | Smallholders, first-truck buyers, short daily rounds | Estates on daily collection rounds, more than about 8 trips a day | Fixed loading points: tips straight into a collection lorry, no ramp |
| Pricing | By quotation, built to your specification | ||
Independent performance and stability testing was carried out on a sample of the X-900 only. Details are on the X-900 page.

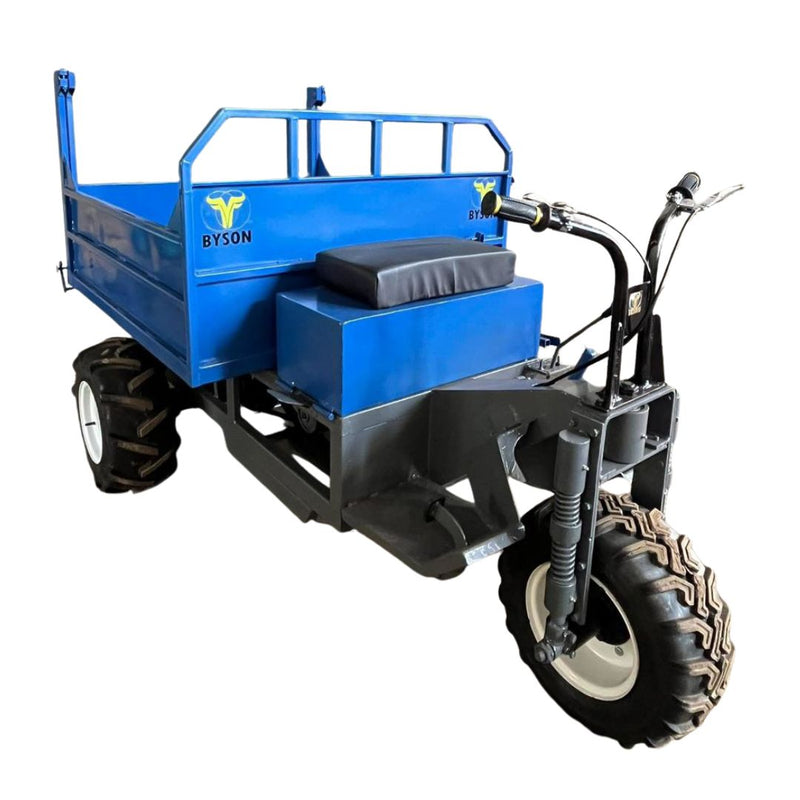

BYSON X-600 Standard
The standard model of the X-Series: a manual 3-wheel agriculture mini truck for daily harvest cycles. Compact, lightweight and single-operator, 1,300 mm wide to fit between narrow rows.
| Load capacity | 700 kg uneven ground / 1,000 kg flat ground |
|---|---|
| Unloading | Manual hand-lever tilt plus manual door release (rear pivot dumper) |
| Dimensions (L x W x H) | 2300 x 1300 x 1310 mm |
| Wheel base | 1650 x 1100 mm |
| Engine | 10 HP, 418 cc, single-cylinder, 4-stroke, air-cooled diesel (model BESB186FA) |
| Fuel | Diesel |
| Gearbox | 3+1 with differential |
| Tyres | Front 21 x 9.00-10, rear 21 x 10.00-10 |
| Built in | Kluang, Johor, Malaysia |
Built for
- Palm oil smallholders: FFB transfer to roadside collection
- Rubber smallholdings: narrow rows, light to medium loads
- Durian orchards and paddy smallholders
Why operators pick the X-600: the entry-level workhorse. Lower upfront cost, lower fuel burn and simpler maintenance, with no hydraulics to maintain and no unloading battery to charge.

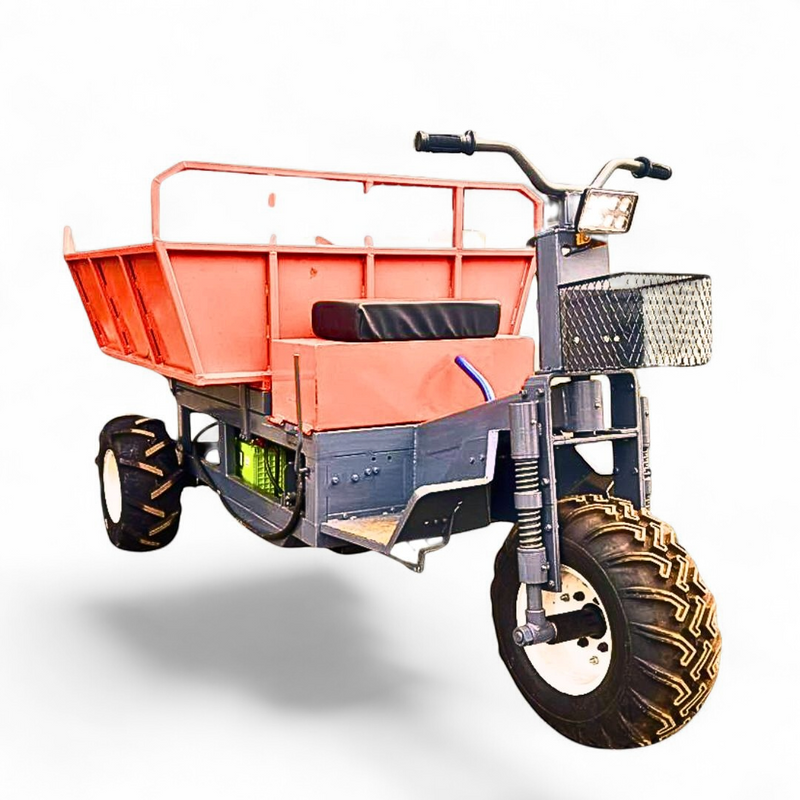

BYSON X-800
The same proven rear pivot drop as the X-600, powered instead of manual. The operator presses one button and the bed tilts, then returns under its own power.
| Safe working load | 500–700 kg |
|---|---|
| Unloading | Battery-operated hydraulic tipper, rear pivot drop |
| Unloading height | Ground level |
| Engine | 10 HP, 418 cc, single-cylinder, 4-stroke, air-cooled diesel (model BESB186FA) |
| Fuel | Diesel |
| Gearbox | 3 forward + 1 reverse with differential, rear-wheel drive |
| Tyres | Front 21 x 9.00-10, rear 21 x 10.00-10 |
| Battery | NS60 or compatible |
| Built in | Kluang, Johor, Malaysia |
Built for
- Oil palm estates on daily collection rounds
- Rubber estates: repeated stops and frequent unloading
- Durian and mixed-fruit orchards: a controlled powered tilt is gentler on fruit
- Operations running more than about 8 trips a day
Why operators pick the X-800: it saves a few minutes per trip and a lot of operator effort over a full day. If your rounds are shorter and manual unloading is acceptable, the X-600 is the more economical choice and carries more on flat ground.

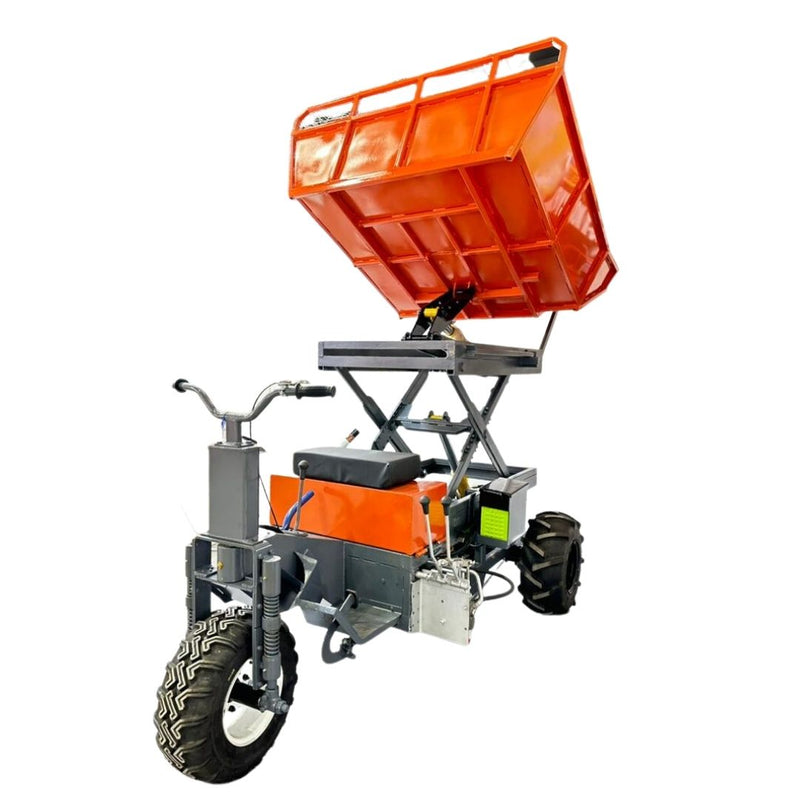

BYSON X-900 Jacklift
A hydraulic scissor jacklift raises the whole bed from 3.5 ft to 7 ft, then the hydraulic tipper tilts it. At 7 ft the bed clears the side of a standard Malaysian FFB collection lorry, so the load tips straight in with no ramp.
| Safe working load | 500–700 kg |
|---|---|
| Unloading | Hydraulic tipper plus hydraulic scissor jacklift |
| Lift height | 3.5 ft (min) to 7 ft (max) |
| Engine | 10 HP, 418 cc, single-cylinder, 4-stroke, air-cooled diesel (model BESB186FA) |
| Fuel | Diesel |
| Gearbox | 3 forward + 1 reverse with differential, rear-wheel drive |
| Tyres | Front 21 x 9.00-10, rear 21 x 10.00-10 |
| Battery | 12 V starter battery |
| Built in | Kluang, Johor, Malaysia |
Built for
- Oil palm estates loading directly into mill lorries or roadside bins
- Larger operations with fixed collection points
- Estates cutting manual handling for cost, injury or labour-availability reasons
- Procurement teams that need documented test evidence
Independent testing. A sample of the BYSON X-900 Jacklift has been independently tested by an accredited Malaysian testing laboratory for performance and stability. The test report covers that tested sample only and does not extend to the X-600 or X-800.
- Static load of 1,000 kg, held at 0° for 24 hours and at 12° for 3 hours
- Manoeuvrability at 1,000 kg on tarmac, level and on a 12° slope
- Lift and hill-climb performance at 1,000 kg
- Brake stopping distance from 19 km/h: 7.2 m dry, 7.9 m wet
The rated safe working load for day-to-day operation remains 500–700 kg. The 1,000 kg figure is a static test result, not a working payload. The test report for that sample is available on request for procurement teams.
Warranty, lead time and delivery
Warranty
- Body, chassis and bucket: 1 year
- Diesel engine: 1 year
- Gearbox: 6 months
- Battery: 6 months
Against manufacturing defects. Malaysia only, non-transferable.
Lead time
1 to 7 days delivery within Malaysia, including Sabah and Sarawak. WhatsApp us to confirm availability for your configuration.
Delivery
1 to 7 days within Malaysia, including Sabah and Sarawak. Export shipping is available: ask us for a destination quote.
Pricing and payment
Every truck is built to order. Pricing is by quotation and depends on configuration and delivery location. Payment terms are stated in your quotation.
The warranty excludes overloading beyond the rated capacity, misuse or accident damage, normal wear and consumables (tyres, belts, clutch lining, brakes, filters, seals), lack of servicing, non-genuine parts and unauthorised repair.
Parts stocked in Kluang
Wear parts for BYSON trucks are supplied from Kluang, Johor, with delivery in 1 to 7 days within Malaysia, including Sabah and Sarawak. Browse by category at bysonengineering.com.my:
