BYSON Agriculture Truck Jacklift X-900 (3-Wheel Mini Truck with Jacklift Loading)

🚚 BYSON Agriculture Truck Jacklift X-900 (3-Wheel Mini Truck with Jacklift Loading)

It removes the second lift entirely

On most estates the harvest gets handled twice. Once into the field truck, and again out of the field truck and up into the mill lorry or collection bin. That second lift is manual, it is slow, and it is where backs get hurt.

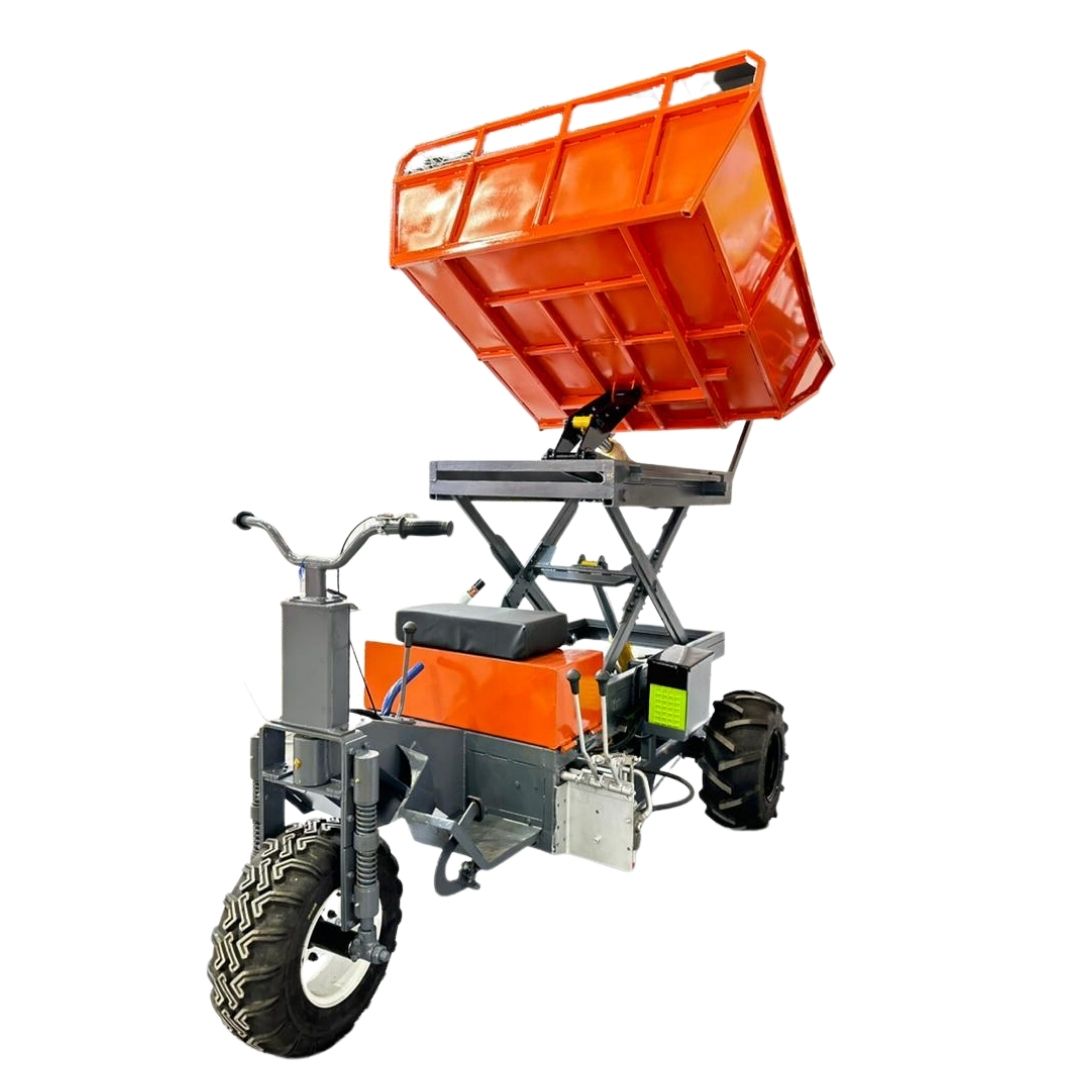

The X-900 has a hydraulic scissor jacklift that raises the whole bed from 3.5 ft to 7 ft. At 7 ft the bed clears the side of a standard Malaysian FFB collection lorry, so the load tips straight in. No ramp. No platform. No second crew. The truck that brought the fruit out of the block is the truck that loads the lorry.

If your operation has a defined loading point — a roadside collection bay, a mill ramp, a bin station — this is the model that changes your labour maths.

How the X-900 unloads

Two stages. The scissor jacklift raises the bed to the height you need, anywhere from 3.5 ft to 7 ft. The hydraulic tipper then tilts it. Both are powered; the operator stays on the machine.

For work that only ever tips at ground level, the X-800 gives you the same one-button hydraulic tipping without the lift mechanism, and the X-600 does it manually for less again.

Independent testing

A sample of the BYSON X-900 Jacklift has been independently tested by an accredited Malaysian testing laboratory for performance and stability. The test report covers that tested sample only and does not extend to the X-600 or X-800.

What was tested on that sample:

• Static load of 1,000 kg, held at 0° for 24 hours and at 12° for 3 hours
• Manoeuvrability at 1,000 kg on tarmac, level and on a 12° slope
• Manoeuvrability at 700 kg off-road on uneven ground at 12°
• Lift and hill-climb performance at 1,000 kg
• Brake stopping distance from 19 km/h: 7.2 m dry, 7.9 m wet
• Noise: 83.4 dB(A) at idle, 93.4 dB(A) at full throttle

The full test report is available on request for corporate, FELDA, RISDA or RSPO procurement. Note that the rated safe working load for day-to-day operation is 500–700 kg — the 1,000 kg figure is a static test result, not a working payload.

Who the X-900 is for

• Oil palm estates loading directly into mill lorries or roadside bins — the single clearest case for this machine
• Larger operations with fixed collection points, where the jacklift is used many times a day at the same station
• Estates cutting manual handling for cost, injury or labour-availability reasons
• Procurement teams that need documented test evidence as part of a purchase or audit process

The jacklift suits sites with defined loading stations rather than continuous slope traversal. If most of your work is field-to-collection-point with ground-level tipping, the X-800 is the better value.

Technical specifications

• Safe working load: 500–700 kg

• Unloading: hydraulic tipper plus hydraulic scissor jacklift

• Lift height: 3.5 ft (min) to 7 ft (max)

• Engine: BYSON ESB186FA — 10 HP single-cylinder, 4-stroke, air-cooled diesel, 418 cc

• Fuel: Diesel

• Gearbox: 3 forward + 1 reverse with differential, rear-wheel drive

• Tyres: 21 x 9.00-10 front, 21 x 10.00-10 rear

• Battery: 12 V starter battery

• Built in Kluang, Johor, Malaysia

Warranty

BYSON-built trucks are warranted against manufacturing defects: 1 year on the body, chassis and bucket; 1 year on the diesel engine; 6 months on the gearbox; and 6 months on the battery. Excludes overloading beyond the rated capacity, misuse or accident damage, normal wear and consumables (tyres, belts, clutch lining, brakes, filters, seals), lack of servicing, non-genuine parts and unauthorised repair. Malaysia only, non-transferable.

Lead time and delivery

Production lead time is typically 2 to 6 weeks from the date your order is confirmed, depending on configuration. Delivery within Malaysia takes 1 to 7 days, including Sabah and Sarawak. Export shipping is available — ask us for a destination quote.

Spare parts and service

Hydraulic components, seals, cylinders and every other wear part are stocked in Kluang, with same-week dispatch across Malaysia. Hydraulic seals should be inspected at every 200-hour service — catching a weeping seal early costs far less than a cylinder rebuild. Service advice is available by WhatsApp, and on-site support can be arranged for larger fleets.

Contact BYSON Engineering

📞 WhatsApp or call +6012-299 8566 or +6017-301 8566
☎️ Office: 07-771 0187
📧 byson@bysonengineering.com.my
🌐 bysonengineering.com.my
🏠 8 & 10, Jalan Kilang, Yap Tau Sah, 86000 Kluang, Johor
🌎 Shipped worldwide — export enquiries welcome

Frequently Asked Questions

Q: How high does the BYSON X-900 Jacklift lift?

A: From 3.5 ft to 7 ft. At full height the bed clears the side of a standard Malaysian FFB collection lorry, so the load can be tipped straight in without a ramp or a second handling step.

Q: What is the safe working load of the X-900?

A: 500–700 kg for normal operation. A sample of the X-900 was separately tested to a 1,000 kg static load, but that is a test figure, not a day-to-day working payload.

Q: Has the BYSON X-900 been independently tested?

A: Yes. A sample of the X-900 Jacklift was tested by an accredited Malaysian testing laboratory for performance and stability, covering static load at 1,000 kg, manoeuvrability on tarmac and off-road, lift and hill-climb performance, and brake stopping distance. The report covers that tested sample only and does not extend to the X-600 or X-800. Contact BYSON at +6012-2998566 to request the report for procurement or audit purposes.

Q: Can the X-900 load FFB directly into a collection lorry?

A: Yes — that is what it is designed for. The 7 ft lift matches standard collection lorry bin heights, which removes the manual transfer step entirely.

Q: How do I get a price for the BYSON X-900, and where can I buy it?

A: The X-900 is built to spec, so pricing is by quotation and depends on your configuration and delivery location. WhatsApp +6012-2998566 for a built-to-spec quote. BYSON ships across Malaysia and exports worldwide.
