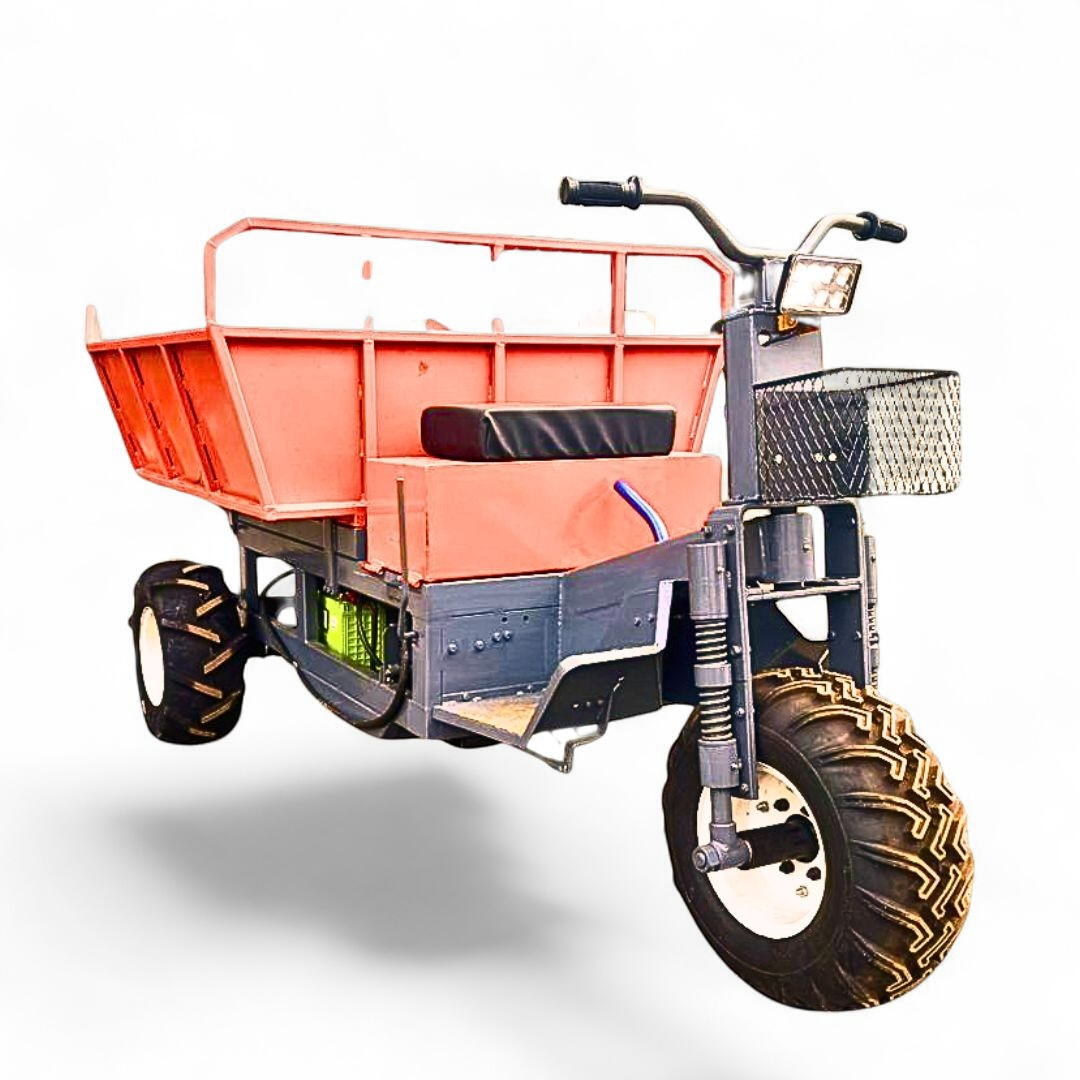

🚚 BYSON Agriculture Truck X-800 Standard (3-Wheel Mini Truck with Hydraulic Tipper)

One button empties the load

That is the difference between the X-800 and the X-600, and on a high-cycle estate it is the difference that pays for the machine. The X-600 unloads by hand: pull the lever, release the door, tip the carrier. The X-800 does the same job with a battery-operated hydraulic motor. The operator presses one button and the bed tilts.

On two or three trips a day that saves a few minutes. On ten or fifteen trips a day it changes how tired your operator is at 4pm, and how many rounds he can still do. Estates running daily collection cycles are the reason this model exists.

How the X-800 unloads

Same proven rear pivot drop as the X-600 — the carrier tilts at the back and the harvest drops out — but powered instead of manual. No hand lever, no manual door release, no climbing down to wrestle a full bucket. The bed returns under its own power, so the operator is moving again immediately.

Unloading is at ground level. If you need to tip into something higher — a mill lorry bin, a collection trailer, a processing hopper — that is the X-900 Jacklift, which raises the bed from 3.5 ft to 7 ft.

Who the X-800 is for

• Oil palm estates on daily collection rounds — where cycle time and operator fatigue decide how much FFB reaches the collection point before the day ends
• Rubber estates — latex buckets and coagulated sheet, repeated stops, frequent unloading
• Durian and mixed-fruit orchards — a controlled powered tilt is gentler on fruit than a manual drop
• Any operation running more than about eight trips a day, where the hydraulic upgrade earns back its cost in labour

If your rounds are shorter and manual unloading is acceptable, the X-600 Standard is the more economical choice and carries more on flat ground.

Technical specifications

• Item code: BESB-AT-0002

• Safe working load: 500–700 kg

• Unloading: battery-operated hydraulic tipper, rear pivot drop

• Lift height: ground level

• Engine: BYSON ESB186FA — 10 HP single-cylinder, 4-stroke, air-cooled diesel, 418 cc

• Fuel: Diesel

• Gearbox: 3 forward + 1 reverse with differential, rear-wheel drive

• Tyres: 21 x 9.00-10 front, 21 x 10.00-10 rear

• Battery: Amaron NS60 or compatible

• Built in Kluang, Johor, Malaysia

Warranty

BYSON-built trucks are warranted against manufacturing defects: 1 year on the body, chassis and bucket; 1 year on the diesel engine; 6 months on the gearbox; and 6 months on the battery. Excludes overloading beyond the rated capacity, misuse or accident damage, normal wear and consumables (tyres, belts, clutch lining, brakes, filters, seals), lack of servicing, non-genuine parts and unauthorised repair. Malaysia only, non-transferable.

Lead time and delivery

Production lead time is typically 2 to 6 weeks from the date your order is confirmed, depending on configuration. Delivery within Malaysia takes 1 to 7 days, including Sabah and Sarawak. Export shipping is available — ask us for a destination quote.

Spare parts

Every wear part for the X-800 is stocked in Kluang — tyres and rims, engine parts, gearbox components, hydraulic hoses and seals, cables, electricals, rubber components. Same-week dispatch across Malaysia. Local workshops know these machines, which is the practical reason a locally built truck costs less to keep running than an imported one.

Contact BYSON Engineering

📞 WhatsApp or call +6012-299 8566 or +6017-301 8566
☎️ Office: 07-771 0187
📧 byson@bysonengineering.com.my
🌐 bysonengineering.com.my
🏠 8 & 10, Jalan Kilang, Yap Tau Sah, 86000 Kluang, Johor
🌎 Shipped worldwide — export enquiries welcome

Frequently Asked Questions

Q: What is the safe working load of the BYSON X-800?

A: 500–700 kg, depending on terrain and how the load sits in the bucket. Reduce toward the lower end on sustained steep grades.

Q: How does the X-800 differ from the X-600?

A: The X-800 and X-600 share the same 3-wheel chassis, the same ESB186FA diesel engine and the same rear pivot drop mechanism. The upgrade is the unloading: the X-800 uses a battery-operated hydraulic tipper instead of a manual hand lever and door release. The X-600 carries more on flat ground (700 kg uneven surface / 1000 kg flat surface); the X-800 unloads faster and with far less operator effort.

Q: Has the BYSON X-800 been independently tested?

A: No. The X-800 has not itself been tested. It shares the X-Series chassis and bucket platform, and independent performance and stability testing was carried out on a sample of the BYSON X-900 Jacklift by an accredited Malaysian testing laboratory. That test report covers the tested sample only. Contact BYSON at +6012-2998566 for compliance documentation.

Q: What crops and terrain is the X-800 suited to?

A: Oil palm FFB collection, rubber estate rounds, durian and mixed-fruit orchards, paddy, cocoa, vegetable and general farm haulage. Its 3-wheel layout and tight turning circle suit narrow plantation rows; the diesel engine handles both soft off-road ground and tarmac estate roads.

Q: How do I get a price for the BYSON X-800, and where can I buy it?

A: The X-800 is built to spec, so pricing is by quotation and depends on your configuration and delivery location. WhatsApp +6012-2998566 for a built-to-spec quote. BYSON ships across Malaysia and exports worldwide.

Warranty & Maintenance

• BYSON-built trucks are warranted against manufacturing defects: 1 year body, chassis and bucket; 1 year diesel engine; 6 months gearbox; 6 months battery.
• Genuine BYSON spare parts kept in stock in Malaysia — tyres, engine, gearbox, electricals, controls, rubber components — for same-week dispatch.
• Service and maintenance tips, plus parts guides, are available on request.

For warranty claims, servicing advice, or parts orders, contact 012-299 8566 / 017-301 8566.
