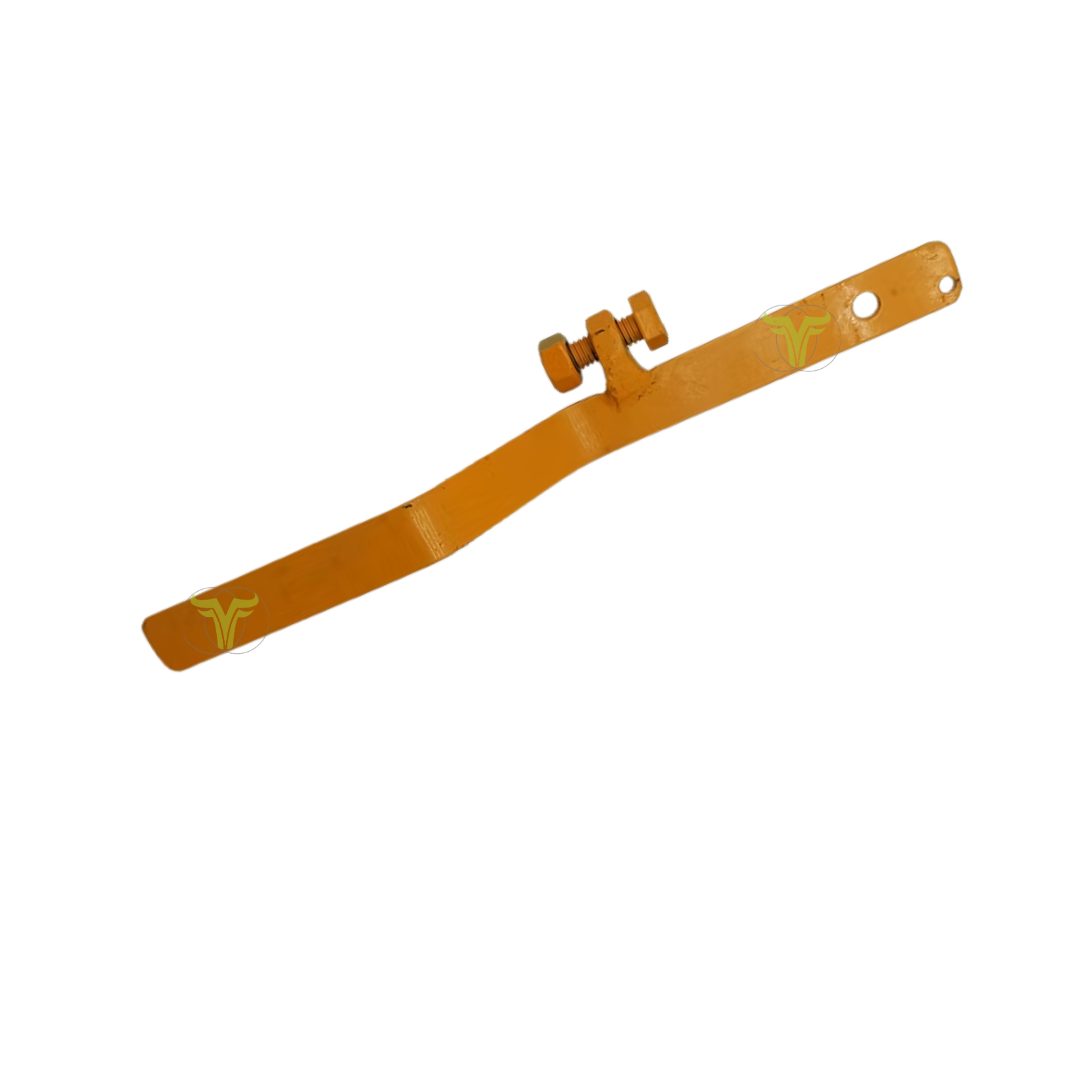

LEVER CARRIAGE LOCK

PART FOR MECHANICAL BUFFALO (MB) LOCK BUCKET.

Dimension      : 26 cm

Wight               : 300 gm

• Function: A lever carriage lock is a mechanical device that uses a lever to engage or disengage a locking mechanism, securing the carriage (a sliding or moving part) in a fixed position along a horizontal shaft or rail. This ensures stability during operation, preventing unwanted movement.

• Applications:
  • Lathes: In metalworking lathes, the carriage (which holds the cutting tool) moves along a horizontal shaft or bed. The lever carriage lock fixes the carriage in place for precise machining tasks.
  • Milling Machines: Locks the carriage to maintain alignment during cutting.
  • Industrial Equipment: Used in various machines where a component slides along a horizontal axis and needs to be locked for safety or precision.

• Mechanism:
  • The lever typically engages a clamp, bolt, or cam that presses against the shaft or guideway, creating friction to hold the carriage.
  • It’s designed for quick operation, allowing the user to lock or unlock the carriage efficiently.

• Design Notes:
  • Ease of Use: The lever is ergonomic, often requiring a simple push or pull to activate.
  • Durability: Made from robust materials like steel to withstand repetitive use and high forces.
  • Precision: Ensures the carriage remains stationary without play, critical for accurate machining.
